前段时间看到GoJs 产品绘制workflow有自动化布局、展示风格简洁优点，缺点是收费产品。参考json格式数据结构，nodeDataArray与linkDataArray两个数据完成了流程数据存储，结合vue-workflow-chart与通用json-rest-api存储实现完整工作流核心功能

节点维护

workflow数据存储由节点数组、关系数组和样式数组构成，基础数据格式为：

{
  "states": [{
      "id": "start",
      "label": "开始"
    }, {
      "id": "end",
      "label": "结束"
    }],
    "transitions": [{
      "id": "Dz2un1r",
      "label": "ask for auditing",
      "target": "start",
      "source": "end"
    }]
}

逻辑控制为节点添加上级、下级和同级，删除节点删除相应的关系数组值

路由名称打开页面

在流程列表页面打开Dashboard页面，并传递 id 值

<el-table-column fixed="right" label="操作" width="100">
            <template slot-scope="scope">
              <router-link tag="a" target="_blank" :to="{name:'Dashboard',query:{id: scope.row.k}}">打开</router-link>
            </template>
      </el-table-column>

流程设计页面获取route中的query参数

created() {
    this.id = this.$route.query.id
    if (this.id) {
      api.getFlow(this.id).then(({data}) => {
        this.states = data.items.v.states;
        this.transitions = data.items.v.transitions
        this.name = data.items.v.name
      });
    }else{
      this.states=[{id: "start", label: "开始"}, {id: "end", label: "结束"}]
      this.transitions = [{"id": "Dz2un1r","source": "start","target": "end"}]
    }
  },

js生成ID

getId(){
      return Math.random().toString(32).substr(2)
    }

js取当前时间戳

getId(){
      return Math.random().toString(32).substr(2)
    },
    getTime(){
      var date = new Date();
      return date.getFullYear() + '-' + (date.getMonth()+1 < 10 ? '0'+(date.getMonth()+1) : date.getMonth()+1) + '-'
      + (date.getDate()<10?'0'+date.getDate():date.getDate()) + ' ' + date.getHours() + ':' + date.getMinutes() + ':' + date.getSeconds()
    },

子父组件之间传值

用户组件

<el-table :data="tableData" stripe style="width: 100%">
      <el-table-column prop="name" label="名称" width="180" sortable></el-table-column>
      <el-table-column prop="des" label="描述" width="180" sortable></el-table-column>
      <el-table-column fixed="right" label="操作" width="100">
            <template slot-scope="scope">
              <el-button @click="handleUser(scope.row)" type="text" size="small">选择</el-button>
            </template>
      </el-table-column>
</el-table>

methods: {
      handleUser(user) {
        this.$emit('handleUser',user)  // 向父组件传值
      }
    }

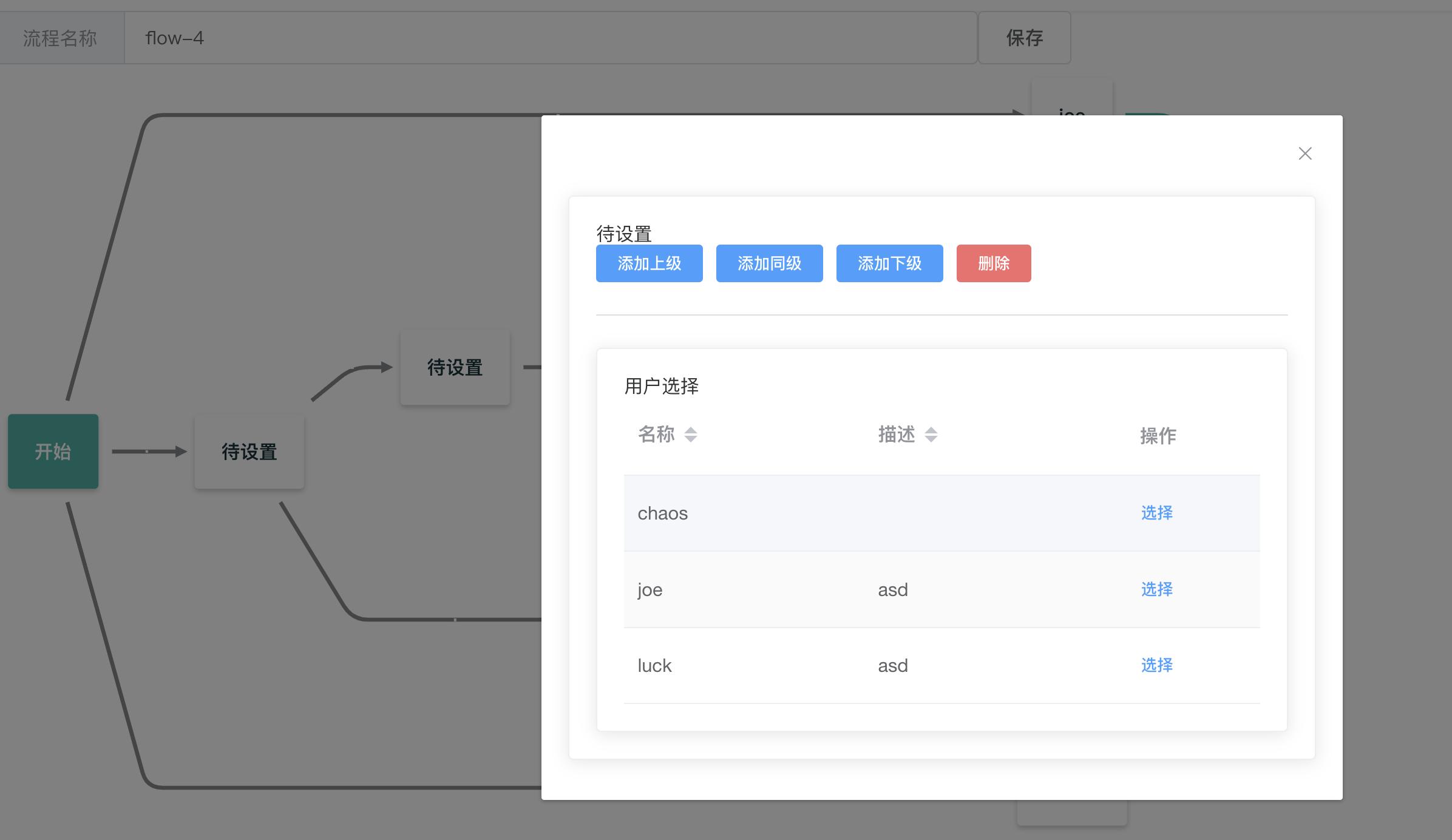

节点设置界面中使用了选择用户组件；界面中引用user组件

<el-divider></el-divider>
<user @handleUser="setUser"></user>

接受用户组件中定义的handleUser传递的user json对象

import user from "../../components/user.vue"
export default {
  name: "App",
  components: {
    WorkflowChart,
    user,
  },
  methods: {
    setUser(user){
      this.state.label = user.name
      this.updateState()
    },
  }
}

界面中if else控制

<div v-if="state.id === 'start'">
     <el-button type="primary" size="mini" @click="addState('child')">添加下级</el-button>
</div>
<div v-else-if="state.id === 'end'">
     <el-button type="primary" size="mini" @click="addState('parent')">添加上级</el-button>
</div>
<div v-else>
</div>
